Squeeze Casting: Process, Tooling Cost and When It Beats Die Casting

This guide covers where squeeze casting actually fits on a sourcing decision, the process window a foundry can hold, what the tooling costs, and how to write a print that gets a clean quote. Numbers come from production practice rather than lab coupons, and where an industry body publishes the reference method we link it — see the American Foundry Society (AFS) for casting practice and NADCA for the die casting comparison baseline. If you want the wider picture first, start with our Guía de fundición de metales, or go straight to the aluminum casting capability page.

What Squeeze Casting Does Differently

Every casting process fights the same two enemies: gas dissolved or entrained in the metal, and shrinkage as liquid turns solid. Gravity processes accept both and feed them with risers. High-pressure die casting fixes shrinkage with intensification pressure but creates gas porosity by filling at 30–60 m/s. Squeeze casting attacks both at once: it fills at well under 2 m/s, so air is not beaten into the metal, and it then holds 50–150 MPa on the semi-solid mass so shrinkage cavities are squeezed shut and fed from the liquid core.

The result sits mechanically between fundición a presión de aluminio y closed-die forging: near-net-shape geometry like a casting, mechanical properties close to a wrought product.

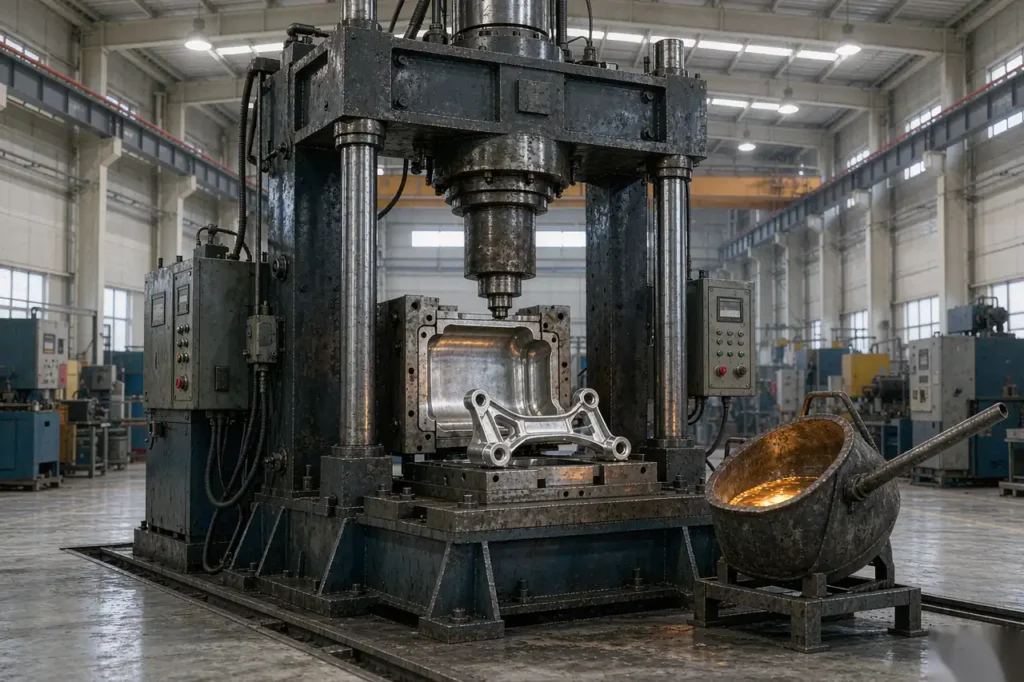

Direct and Indirect: Two Machines, One Principle

Both variants pressurize metal during solidification. They differ in how the metal gets into the cavity, and that difference decides which parts each can make.

Where the Tonnage Comes From

Press size is not a marketing number — it falls straight out of projected area times specific pressure: F = p × A. A bracket with a projected area of 320 cm² (32,000 mm²) squeezed at 90 MPa needs 32,000 × 90 = 2,880,000 N, about 294 tonnes. Specify a 400 t press, not a 300 t one: you need 25–30% margin for die closing force, ejection, and the fact that the last hot spot is still liquid when the rest has frozen. The die itself is a hardened tool steel assembly with ejection, thermal control and often moving cores — the same discipline we apply to casting mold and tooling work, built to a tighter pressure duty. This is the hard ceiling on part size, and it is why squeeze casting lives in the 0.2–25 kg range rather than in the hundreds of kilograms where resin sand casting o shell mold casting take over.

The Squeeze Casting Process Window

These are the numbers a foundry will actually quote against. If a supplier promises values outside this band without a specific reason, ask what is different about their machine.

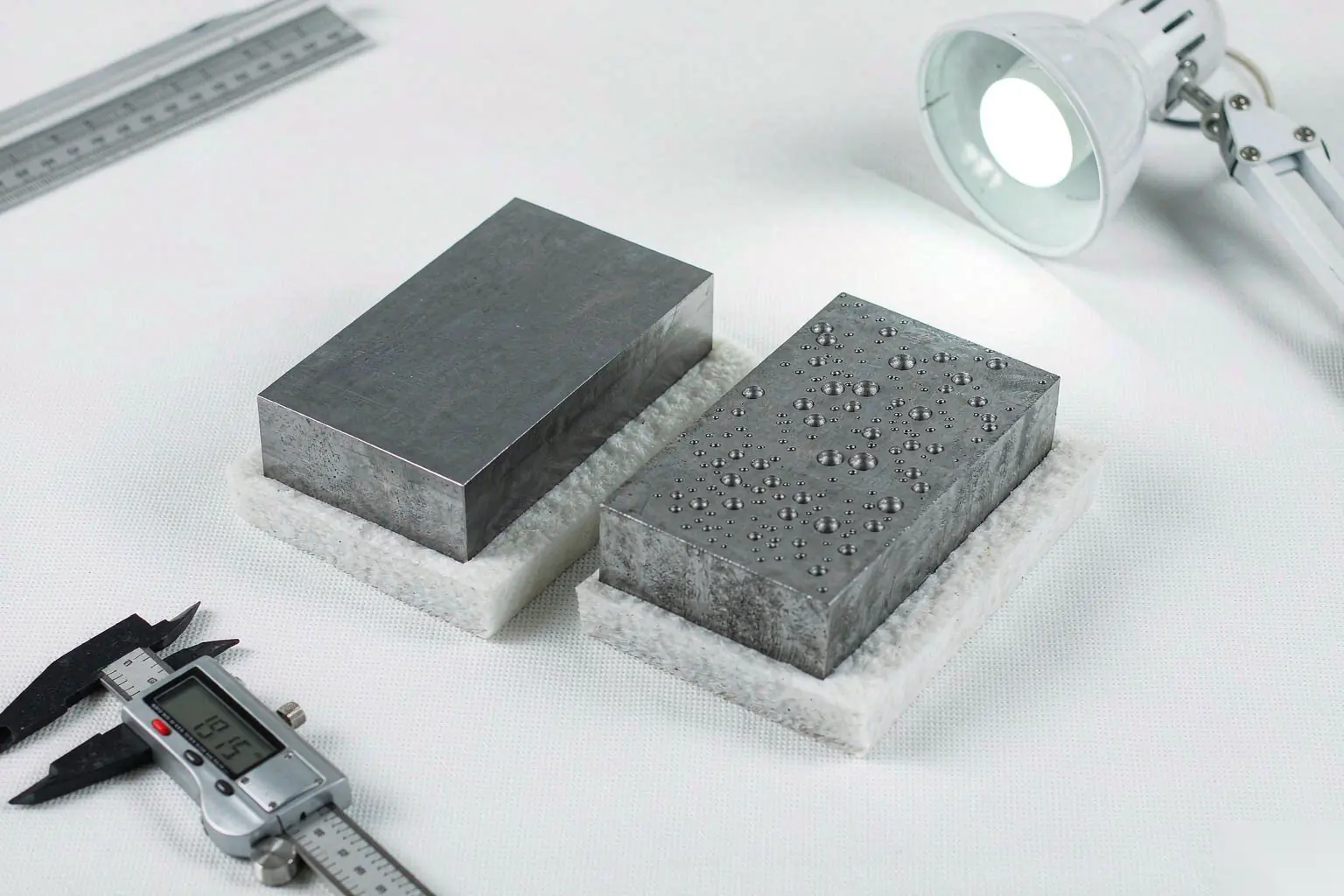

Why Pressure Removes Porosity

Three mechanisms work together, and all three are measurable on the shop floor.

• No entrained air. At 0.05–1.5 m/s the metal front stays coherent instead of atomizing, so there is no air to trap. This is the same physics that makes flow turbulence control matter in gravity pouring — squeeze casting simply designs turbulence out of the process.
• Shrinkage is squeezed shut. Any cavity that tries to form during solidification is collapsed by 50–150 MPa of external pressure and fed from the remaining liquid. This is why the pressure must be held until the last hot spot freezes — release it 3 s too early and the shrinkage returns exactly where the section is thickest.
• Faster solidification. Pressing the metal hard against the die raises the interfacial heat-transfer coefficient from roughly 2,000–3,000 W/m²·K in gravity permanent mold to 5,000–10,000 W/m²·K under pressure. Local freezing time drops about 30–40%. Scaling from the Chvorinov case in our casting simulation article — a 20 mm aluminum plate at modulus 1 cm takes about 18.5 s in sand, 5.9 s in a gravity metal mold — squeeze brings that to roughly 4 s, which is why an 8–12 s dwell gives comfortable margin.

The microstructural payoff is dendrite arm spacing. Secondary dendrite arm spacing runs 40–60 µm in sand cast aluminum, 25–40 µm in gravity permanent mold, and 12–25 µm in squeeze cast material. Finer spacing is what turns the same alloy into a part with usable elongation — the reason a squeeze cast A356-T6 reports roughly 330 MPa UTS / 265 MPa yield / 10% elongation against about 320 MPa / 160 MPa / 3% for an as-cast A380 die casting of similar section. Full alloy-by-alloy numbers are in our A356 vs A380 comparison.

Two commercial consequences follow, and they are usually the real reason to specify squeeze casting: the part can be T6 heat treated without blistering, and it can be welded and anodized. Both are off the table for conventional high-pressure die castings because entrapped gas expands when heated. On the production side that means the part flows into heat treatment services y surface treatment services without a special work-around. See also our heat treatment guide y surface finishing options.

Squeeze Casting vs HPDC vs Closed-Die Forging

Buyers rarely choose squeeze casting in a vacuum. The comparison is almost always against the two neighbours: high-pressure die casting on the cost side and forging on the performance side.

Tooling Cost and Break-Even Volume

Squeeze casting tooling costs more than die casting tooling and less than a full forging die set for a complex part — but the decision never turns on tooling alone. Two worked cases show where the money actually moves.

Case A — Squeeze vs HPDC on a Pressure-Tight 1.8 kg Housing

The part is a pressure-tight aluminum body of the kind we build for valve and pump applications. It must pass a 100% helium leak test, take a T6, and be welded to a fitting. HPDC can make the shape but not the acceptance criteria without impregnation.

Note what happened: HPDC looked $3.40 cheaper per shot and ends up $3.40 more expensive per good part once impregnation and leak rejects are counted. Tooling difference is $14,000, so the break-even is 14,000 ÷ 3.40 ≈ 4,118 pieces. At 25,000 parts a year that is about $85,000 saved annually — and the rejects stop appearing at final test, which is where they cost the most. Our casting cost breakdown walks through the same accounting method for other processes.

Case B — Squeeze vs Forging on a 2.4 kg Steering Knuckle

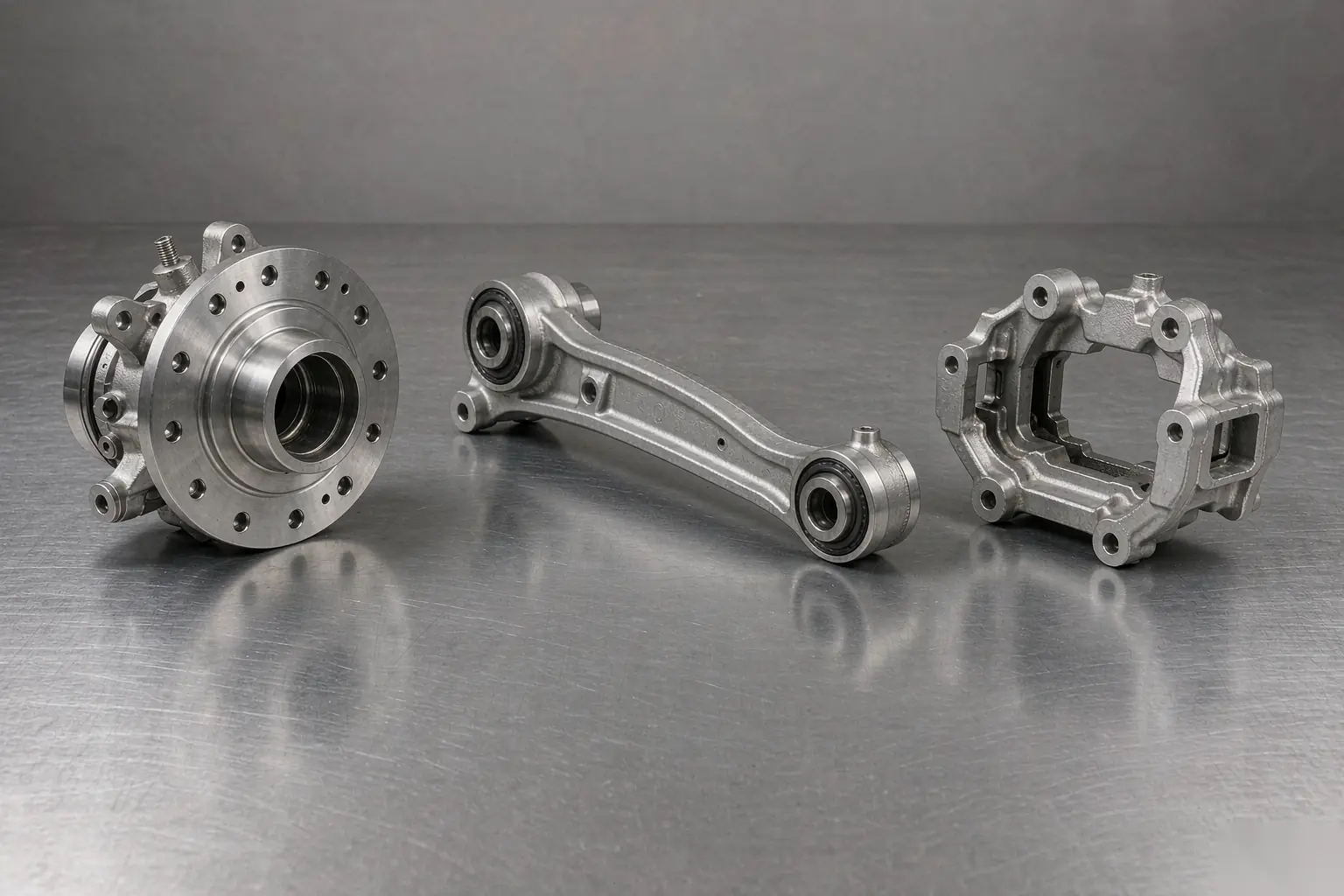

Knuckles, control arms and brackets are the classic automotive casting workload, and on a chassis part the comparison is machining, not casting. A forging has to be bought oversized and cut back; squeeze casting holds net shape. Machining is charged at $75/hour, aluminum at $2.10/kg.

Squeeze casting saves $15.87 per part, mostly in machine time and swarf. The tooling delta is $36,000, so break-even is 36,000 ÷ 15.87 ≈ 2,268 pieces — at 12,000 a year the switch pays back in about three months and runs at roughly $190,000 a year saved. Forging still wins when the duty cycle is genuinely extreme or when a section exceeds about 50 mm; below that, the near-net-shape route usually wins on cost at equal fatigue life.

When Squeeze Casting Is the Wrong Choice

• Thin-wall parts. Below about 2.5 mm the metal front freezes before pressure can complete the fill. Use high-pressure die casting instead, and see fundición a presión vs. fundición en arena for the boundary — that process exists precisely for thin walls.
• Large projected area. Because F = p × A, a 1,000 cm² part at 90 MPa needs about 918 tonnes. Very few shops run presses that big; above roughly 25 kg you are better served by lost foam casting, centrifugal casting, or sand casting.
• Very high volume on a non-critical part. Above ~100,000 a year with no leak or fatigue requirement, HPDC cycle time beats every argument.
• Complex internal passages. Steel cores handle holes to about 3× diameter in depth. Deeper or convoluted internal geometry belongs in fundición en arena o fundición a la cera perdida, or in a fabricated assembly — see casting vs fabrication.
• Prototype budgets. Tooling runs $60,000–90,000 and takes 10–16 weeks. For one to twenty pieces, run a prototype casting or a 3D printed pattern first, and read 3D printing vs casting for the crossover point.

How to Spec a Squeeze Cast Part

A print written for sand casting will get a poor squeeze quote. Six rules cover most of it.

• Walls: 4–8 mm nominal, and keep adjacent sections within a 2:1 thickness ratio. Pressure feeds the last hot spot, but it cannot fight a 30 mm boss next to a 4 mm web — that is where porosidad por contracción still shows up.
• Ribs: 0.6–0.8 × wall thickness, height no more than 4 × thickness, 1–2° draft.
• Draft: 0.5–1° on external walls (pressure helps release), 1.5–2° on cored holes. More detail in our mold and pattern design guide.
• Machining allowance: 0.5–1.0 mm on faces up to 150 mm, 1.0–1.5 mm above that. Our Mecanizado CNC team quotes against that stock, not against the raw casting. Do not copy a sand casting allowance of 3 mm onto a squeeze print — you will pay for metal and machine time you do not need.
• Tolerances: call out ISO 8062-3 DCTG 7 for dimensions formed in one die half, DCTG 8 across the parting line or a moving core.
• Acceptance: T6 per AMS 2771, radiographic acceptance per ASTM E155 reference radiographs for aluminum castings, and leak testing to your own rate. Our métodos de inspección de piezas fundidas guide explains which NDT method finds what.

Alloy choice is narrower than in sand casting: A356 and A357 dominate, Al-Mg compositions such as Magsimal-59 work where ductility matters more than castability, magnesium AZ91 is common for housings, and squeeze casting is the standard route for aluminum matrix composites — pressure infiltration pushes metal into a SiC or alumina preform at 50–100 MPa, giving 20–30% reinforcement with thermal conductivity around 160–180 W/m·K and a CTE near 13 ppm/K. If you are weighing alloys more broadly, our selección de aleaciones para fundición guide covers the full decision tree.

Preguntas frecuentes

What is squeeze casting?

A near-net-shape fundición de metales process in which molten metal solidifies inside a closed steel die under 50–150 MPa of pressure. It combines the geometry freedom of casting with the density and mechanical properties of a forged part, and it is the usual answer when a die casting cannot pass a leak test or survive heat treatment.

Is squeeze casting the same as liquid metal forging?

They are the same family. “Liquid forging”, “squeeze forming” and “liquid metal forging” are trade names, mostly used for the direct variant where a punch closes onto poured metal. The indirect variant — low-velocity injection followed by intensification — is closer to a hybrid of low-pressure die casting and forging.

Can squeeze cast parts be heat treated and welded?

Yes, and this is the main commercial reason to choose the process. With under 0.5% gas porosity there is no entrapped gas to expand, so T6 is safe, TIG and MIG welding works, and anodizing gives a uniform finish. None of the three is reliable on a conventional high-pressure die casting.

What wall thickness does squeeze casting need?

A 3–5 mm minimum, with 4–8 mm as the practical nominal. Heaviest sections can reach 40–50 mm if pressure can still feed them, but any isolated mass much thicker than its neighbours becomes an unfed hot spot. For genuinely thin walls under 2.5 mm, use HPDC; for the general thickness logic see our wall thickness guidelines.

What volume justifies the tooling?

Tooling runs $60,000–90,000. Against HPDC on a leak-tight part the break-even lands near 4,100 pieces once impregnation and leak rejects are counted; against closed-die forging it lands near 2,300 pieces once the machining saved is included. Below about 2,000 parts a year, look at gravity permanent mold casting or sand casting first.

Which alloys run in squeeze casting?

Aluminum A356 and A357 dominate, Al-Mg alloys such as Magsimal-59 serve high-ductility structural parts, magnesium AZ91 is used for lightweight housings, and Al-SiC or Al-alumina composites are produced by pressure infiltration of a ceramic preform. Copper alloys and iron are not practical squeeze candidates — the die temperatures are too aggressive.

*Process window, cost figures and mechanical properties referenced from AFS / NADCA industry publications and Supro MFG shop-floor records.
